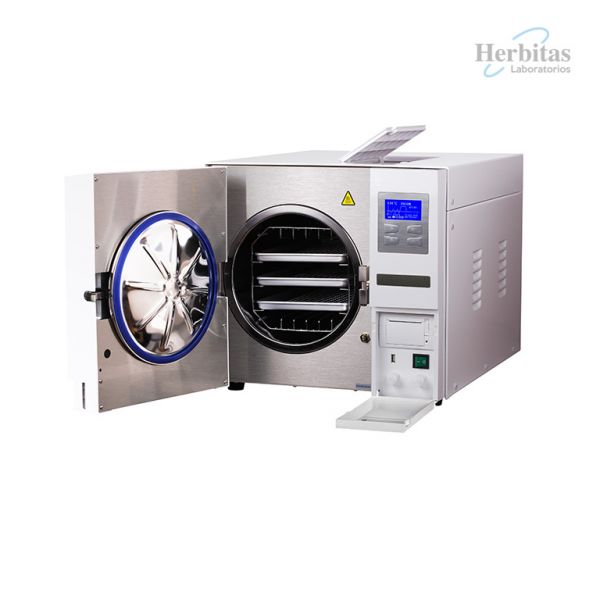

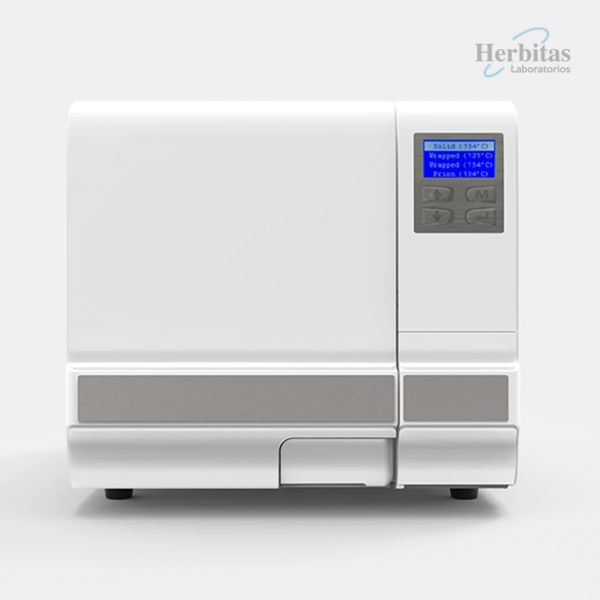

The Autoclave STE 23 D is a class B steam sterilizer with an extra-long 23-liter chamber. Designed for the sterilization of medical, dental, aesthetic, and veterinary instruments, it offers a fast cycle program with independent drying, ensuring maximum efficiency and safety.
The Autoclave ICANCLAVE STE 23 D is an advanced sterilization solution that complies with the European standard EN13060. Its extra-long 23-liter chamber allows the processing of large instruments, such as laparoscopes, which do not fit in conventional autoclaves. Thanks to its class B technology, it can sterilize solid, hollow, and porous instruments, whether wrapped or unwrapped, ensuring complete disinfection.
This model is designed for use in dentistry, laboratories, aesthetic medicine, veterinary applications, and other healthcare sectors. It features a rapid sterilization program with independent drying, ideal for dental handpieces and micro-instruments, optimizing work time and improving operational efficiency.
With its compact design and advanced features, the ICANCLAVE STE 23 D is the perfect choice for professionals seeking effective, fast, and safe sterilization.
USAGE INDICATIONS:
Specifically designed for ultra-long instruments. The sterilizer depth reaches up to 620 mm, effectively solving the problem of sterilizing ultra-long instruments, such as laparoscopes, which cannot be sterilized in standard tabletop autoclaves.
Used in dentistry, the medical industry, laboratories, beauty, veterinary, podiatry, and tattooing.
Class B sterilizer fully compliant with the EN13060 standard.
Rapid sterilization program with independent drying.
Perfect for solid, hollow, and porous instruments, whether wrapped or unwrapped.
FEATURES:
CLASS: B
CHAMBER CAPACITY: 23 liters
NUMBER OF TRAYS: 3 (aluminum)
DIMENSIONS (mm): 490 x 455 x 690
TRAY DIMENSIONS: - Tray 1: 185 x 570 mm - Tray 2: 213 x 570 mm - Tray 3: 227 x 570 mm
CHAMBER DIMENSIONS (mm): Ø250 x 450
CHAMBER DEPTH: Up to 620 mm
WEIGHT: 53 kg
VOLTAGE: 230V / 110V
POWER: 1750W
FREQUENCY: 50/60 Hz
STANDARDS
The Autoclave ICANCLAVE STE 23 D complies with the following safety and performance standards:
UNE-EN 60601-1/A1:1996 → Electromedical equipment. General safety requirements.
UNE-EN 60601-1-2:2015/A1:2021 → Electromedical equipment. General requirements for basic safety and electromagnetic compatibility.
UNE-EN 13060:2015+A1:2019 → Small steam sterilizers.
